Cruise Sub 5 - 1700

The deepest diving five-person private submarine on the market; the ultimate submarine for tourism and research.

  • 5
  • 1700 m
  • 16,000 kg
  • 18 hours

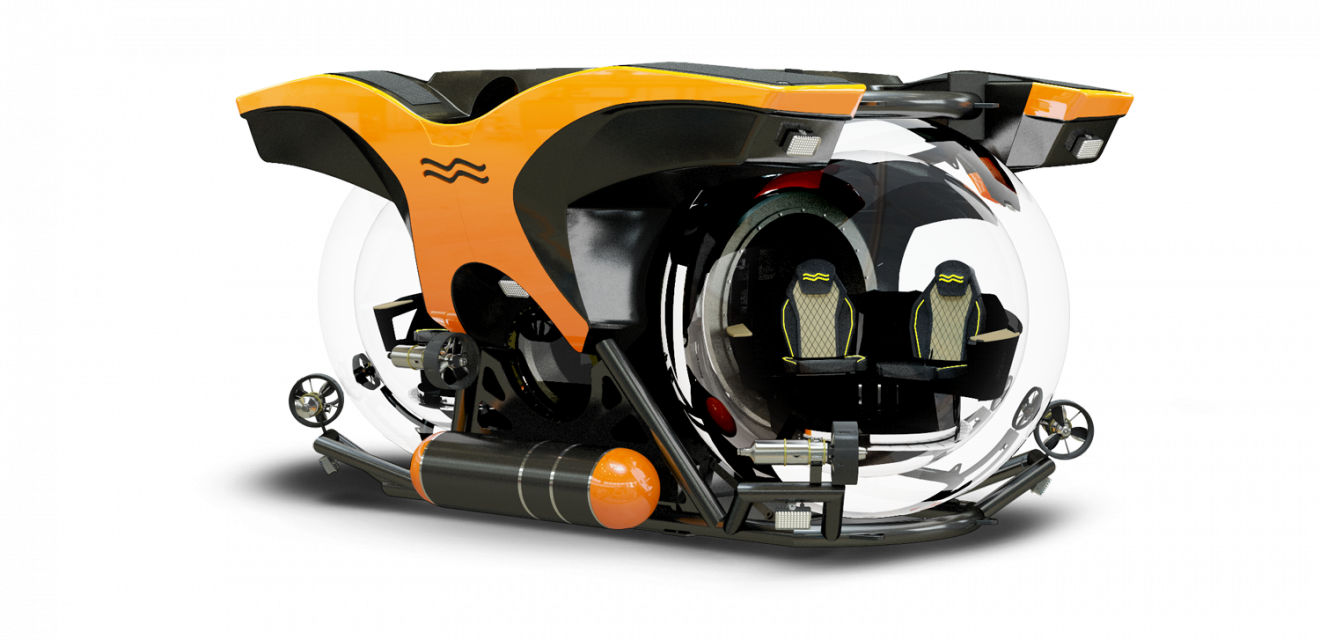

Dive virtually anywhere in the world to 1,700 meters with the Cruise Sub 5 – 1700. This superb submersible is suitable for exploration and leisure alike. Equip the submarine with options like manipulator arms or underwater cameras for research or to document the wonders that are hidden at these depths. With an impressive depth-rating of 1,700 meters, this 5-person submersible is one of the most advanced submersibles available on the market. This multipurpose sub meets the demands and needs of private explorers, research organisations, and other subsea professionals.

As with all U-Boat Worx submersibles, the view through the impressive and spacious acrylic sphere is unmatched.

There is no image available for this view, go to next one.
There is no image available for this view, go to next one.
There is no image available for this view, go to next one.

In a research configuration the Cruise Sub 5 – 1700 can be configured to accommodate plenty of payload for crew.

With a new, compact, pressure tolerant battery system, U-Boat Worx has more than twice the battery capacity than most other submarines – an important characteristic for deep-sea. Safely descending to and ascending from depths of up to 1,700 meters requires less time due to the strategically placed vertical thrusters and our CFD-optimised design.

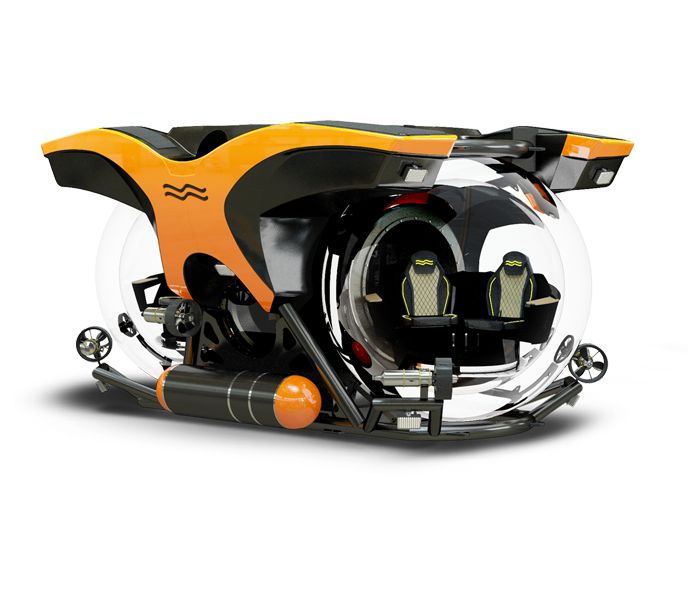

Anatomy

Carefree launch & recovery

When designing each model, U-Boat Worx factors in a variety of specific solutions to ensure safe and effortless launch and recovery from any type of support vessel. The Cruise Sub range is no exception. Its dual lifting point configuration – optionally via a single lifting point – allows for safe and quick launch and recovery.

Another unique feature of each U-Boat Worx submersible is the MARLIN Controller. This wireless remote control allows the operator or pilot to steer the submarine while it is on the surface – effortlessly guiding the sub away from, or back to, the support vessel.

Luxurious and spacious interior

With the Cruise Sub series, we have aspired to create the ultimate in luxury interior design. When onboard a Cruise Sub, guests enjoy exhilarating views from a sumptuous chair in a comfortable air-conditioned environment with variable airflow, adjustable from each seat. You can also enjoy music from a hi-fidelity Bluetooth sound-system and even chill your favourite drinks in a cold-storage box.

Maximal manoeuvrability and speed

The Cruise Subs utilise U-Boat Worx’ latest Pressure-Tolerant Lithium-ion battery system. This new battery technology offers up to 100% more capacity than traditional private submarines. A total capacity of 62 kWh allows the Cruise Sub series to extend mission time and minimize operational limitations. Abundant power has made it possible to apply more and stronger thrusters on our Cruise Subs. Speed both on the surface and underwater are important to keep the sub on course and in position. Another advantage is that greater depths can be reached in record time. The Cruise Sub series is without peer.

Effortless control

Each U-Boat Worx submersible is delivered with a world-class pilot training course. The intuitive interface of our submersibles is easy for pilots to learn. Unique to the U-Boat Worx private submarines is passengers being able to navigate the submersible while under supervision of the pilot. The unique control device – the MANTA Controller – can simply be handed over by the pilot to his guests for a once-in-a-lifetime opportunity to personally steer a submarine.

Revolving Interior

The exceptional architecture of the Cruise Sub with its two large acrylic spheres offers an incomparable immersive dive experience. All passengers share the same unique, undisturbed and undistorted view in all directions. Passengers are safely and comfortably surrounded by the deep sea. The passenger seats in each sphere are mounted on a revolving platform that can turn to face any direction in order to experience the best view.

Large access hatch

You embark the submarine through its top-hatch. This is a large opening on the top that allows for comfortable entry into the interior of the submersible.

Unimpeded view

To experience the underwater world in the optimal way, one of U-Boat Worx’ design priorities has always been the clearest view. To ensure this, our remarkably clear fully acrylic pressure hull has been positioned at the front of the submersible, providing an unobstructed view in every direction, unimpeded by ballast tanks, batteries and other components.

Ever-ready

Some may believe that getting a submersible ready to dive is a time-consuming operation. However, Owners of U-Boat Worx submersibles know that their submarines are simple, efficient and easy to launch and recover. Pre-dive preparations are swiftly executed by our effective design, state-of-the-art software and smart checklists that ensure your submersible is ready to dive whenever you are.

Freeboard extender

Freeboard is the height between the hatch and the waterline. The Freeboard Extender is a sliding barrier that increases the distance between the water and the hatch opening. It simultaneously allows for the submarine to be operated in rough conditions and be stored in low-height garage spaces.
Cruise-Sub--on-the-surface-Freeboard-Extender

Safety Buoy

The Safety Buoy is characteristic for U-Boat Worx submersibles. When released it marks the position of the submarine on the surface. The safety buoy of the deep-diving Cruise Sub models also sends a signal to the mother ship. The Dyneema Rope that connects the buoy with the submersible measures 1.5 times the operating depth of the submersible.

Uncompromised surface capabilities

The Cruise Sub is highly stable yet deftly manoeuvrable on the surface. These are very important characteristics for easy boarding of the sub. Nobody gets wet feet while embarking or disembarking the Cruise Subs! Ergonomic and strategically placed handrails, grips and steps help explorers young and old to board safely and comfortably.

Maximum depth protection (MDP)

The MDP feature prevents the pilot from diving deeper than the submarine’s maximum operating depth. In case the submersible should ever find itself too deep, this safety feature will automatically raise the sub until it is once again within its certified depth.

Large access hatch

You embark the submarine through its top-hatch. This is a large opening on the top that allows for comfortable entry into the interior of the submersible.

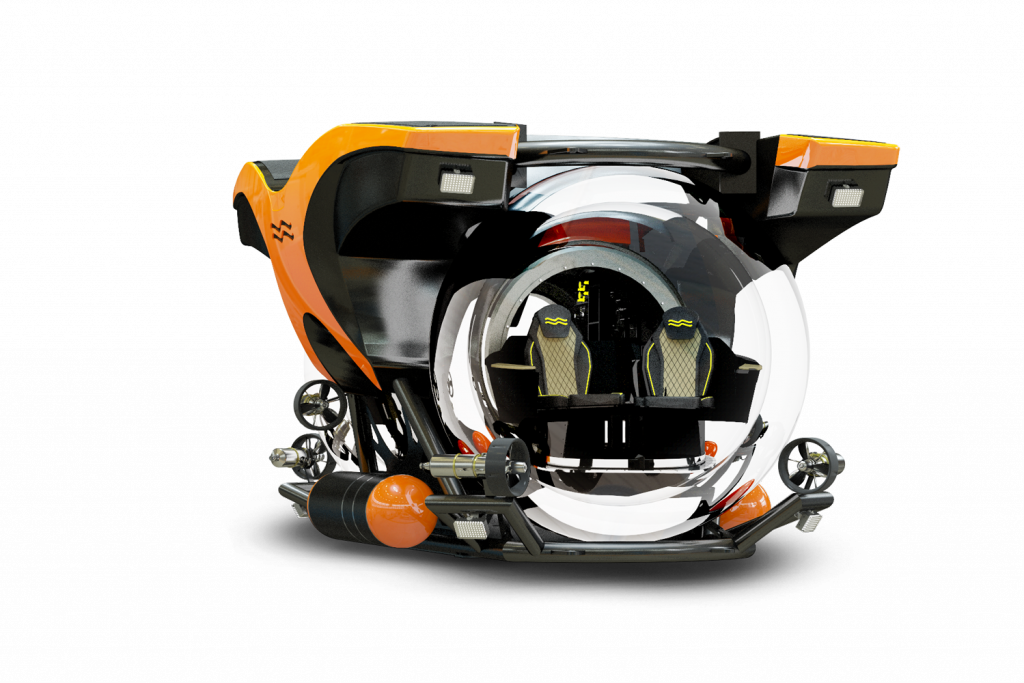

  • Front view
  • Side view

Key Specifications & Features

Specifications
  • Depth

    1,700 meters

  • Occupants

    1 pilot, 4 passengers

  • Endurance

    18 hours

  • Speed

    3 knots

  • Weight

    16,000 kg

  • Length

    455 cm

  • Width

    300 cm

  • Height

    245 cm

  • Battery capacity

    62 kWh

  • Propulsion

    6 x 6.4 kW+ 2 x 5.4 kW

Features
  • Pressure-Tolerant Battery System

    The Pressure-Tolerant Battery System houses the batteries and electronics in oil-filled pressurised enclosures. The use of pressure-resistant components reduces the size and weight of the submersible, particularly on the deep-diving models.

  • Lithium-ion battery technology

    The latest in Lithium-ion battery technology is used to give our submersibles the ultimate performance, lowest weight, smallest footprint, and best endurance. The Lithium-ion Battery System can be quickly recharged and is maintenance-free.

  • MANTA Controller

    The MANTA Controller allows for pinpoint precision manoeuvring. The intuitive controls permit for supervised passenger steering, offering passengers an even more exciting dive experience. The controller also provides quick access to intelligent pilot assistance features such as Auto-heading and Auto-depth.

  • MARLIN Controller

    Initially developed to make launch and recovery effortless and safe, the MARLIN Controller is a wireless remote that can navigate the submarine on the surface. Once the submarine is in the water, the controller can be used to steer it away from the support vessel without a pilot inside. The MARLIN Controller can also be used to keep the submarine in position above a dive site, while the pilot assists with passenger embarkation.

  • Auto-depth

    With Auto-depth engaged, the submersible will hold steady at its current depth. When applying vertical thrust, the function will automatically disengage and seamlessly respond to the pilot’s commands. This function forms part of the intelligent pilot assistance features.

  • Auto-heading

    When Auto-heading is activated, the submersible will automatically hold its current heading, whether following a course or facing an object of interest. This function forms part of the intelligent pilot assistance features.

  • UIS

    The U-Boat Worx Information System (UIS) gives the pilot direct access to all relevant information on a clear touchscreen display. This PLC-based network of sensors ensures the right information is provided at the right time. The UIS makes diving effortless.

  • Omni-directional operation

    Apart from the basic forward, reverse, up and down movements, the submersible can also move laterally. Lateral movement greatly optimises object approach, view, and dive efficiency.

Safety
  • Maximum depth protection (MDP)

    The MDP feature prevents the pilot from diving deeper than the submarine’s maximum operating depth. In case the submersible should ever find itself too deep, this safety feature will automatically raise the sub until it is once again within its certified depth.

  • Deadman's Switch (DMS)

    This DMS safety system will automatically resurface the submersible in the unlikely event that the pilot becomes incapable of controlling it. The pilot needs to acknowledge the DMS every 10 minutes, otherwise it will initiate the ascent procedure.

  • Drop Weight

    This weight can be manually released from within the submersible to increase the buoyancy of the submarine and return it to the surface.

  • Safety Buoy

    The Safety Buoy is characteristic for U-Boat Worx submersibles. When released it marks the position of the submarine on the surface. The safety buoy of the deep-diving C-Researcher models also sends a signal to the mother ship. The Dyneema Rope that connects the buoy with the submersible measures 1.5 times the operating depth of the submersible.

  • Pinger

    A Pinger gives out a pulse that can be received on the surface. With the receiver unit, you can pinpoint at all times the exact position of the submarine when submerged.

  • DNV GL Certification

    Certification by the world-leading classification society, DNV GL, requires each individual submersible to meet stringent and extensive rules and regulations, as well as pass a range of rigorous test and trials from design to final delivery. Overseen by independent surveyors, this is an independent verification of the safety of every U-Boat Worx submersible.
